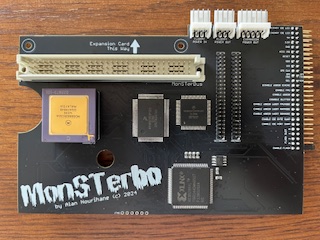

The MonSTerbo is a new Atari STE accelerator with 68000 and 68020 CPUs on board.
MC68SEC000 up to 48MHz - see IMPORTANT below
MC68EC020 up to 40MHz - see IMPORTANT below
Dual IDE Controller with selectable hardware byte-swap mode
8MB ALT-RAM
16MB FLASH ROM
68881/2 support (FPU not included)
Expansion Socket, compatible with the MegaST and 32bit capable.
SPI Master to control up to 4 devices, using the SCL/SDA lines if no RTC connected.
RTC clock module support via SCL/SDA
No soldering required
Additional features...
Cartridge Emulation. The FlashROM can also store up to 16 cartridges when using ROMs less than 1MB. Cartridge Emulation can also be done via FastRAM without the need to use FlashROM.
MapROM where fast RAM is used to emulate the ROMs. This speeds up ROM access, but can also be used to test ROMs before flashing.
